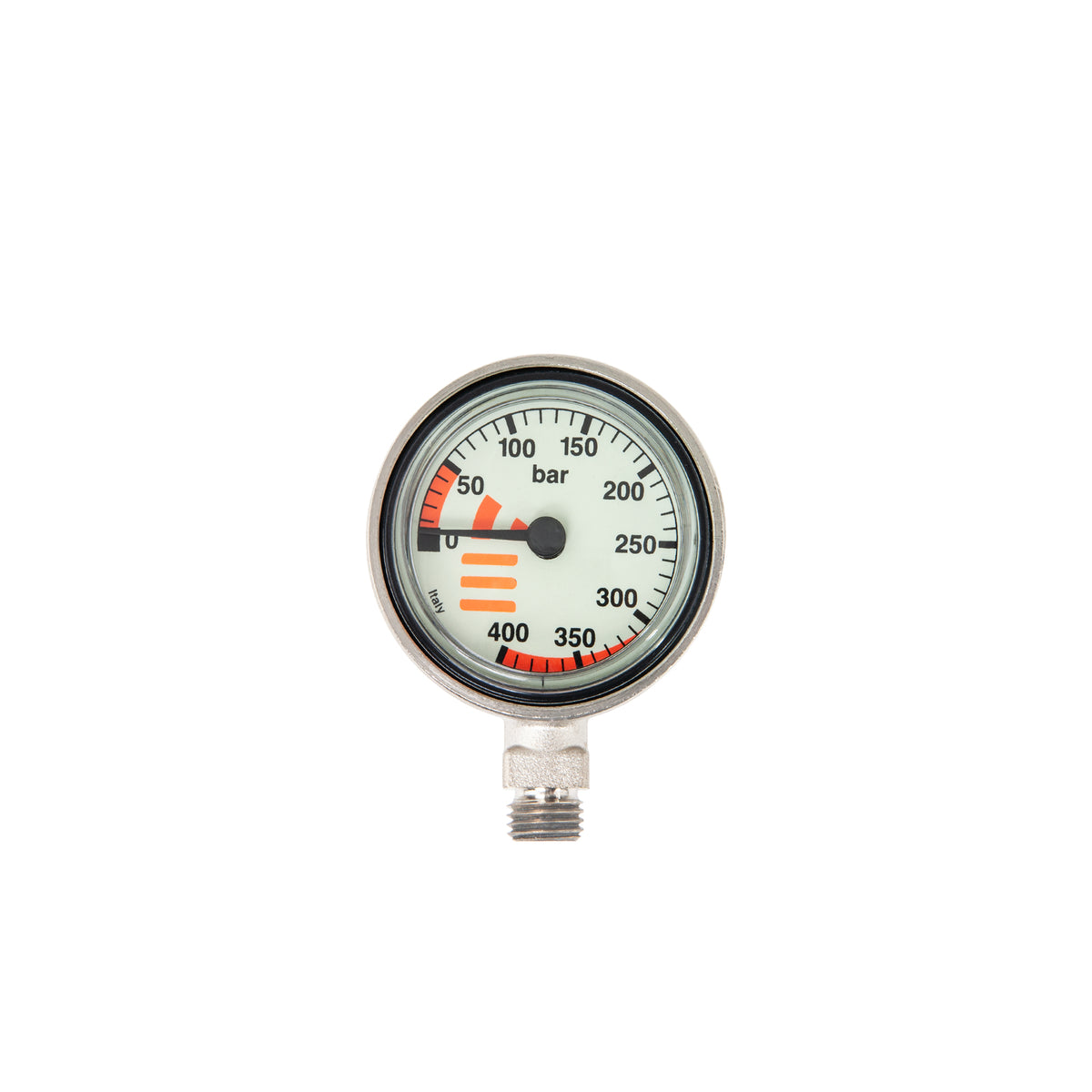

Tecline - Mini SPG 52 mm 400 bar — Head Only

A compact 52 mm submersible pressure gauge, supplied as a head only — no hose. Worth stating plainly, because a customer expecting a complete gauge assembly will be disappointed.

The body is nickel-coated brass rather than plastic, with a polycarbonate window and a fluorescent dial that stays readable as the light goes. The scale runs to 400 bar with a 300 bar maximum working pressure, so the needle sits comfortably inside its range on a 232 or 300 bar fill instead of pinned at the top of the dial.

There is an over-pressure relief valve — the safety feature that matters on any gauge, and the one cheap gauges leave out.

Specifications

• Diameter: 52 mm
• Scale: 0 to 400 bar
• Maximum working pressure: 300 bar
• Body: brass with nickel coating
• Window: polycarbonate
• Dial: fluorescent
• Safety: over-pressure relief valve
• Supplied as: head only, no hose
• Tecline code: 18092
